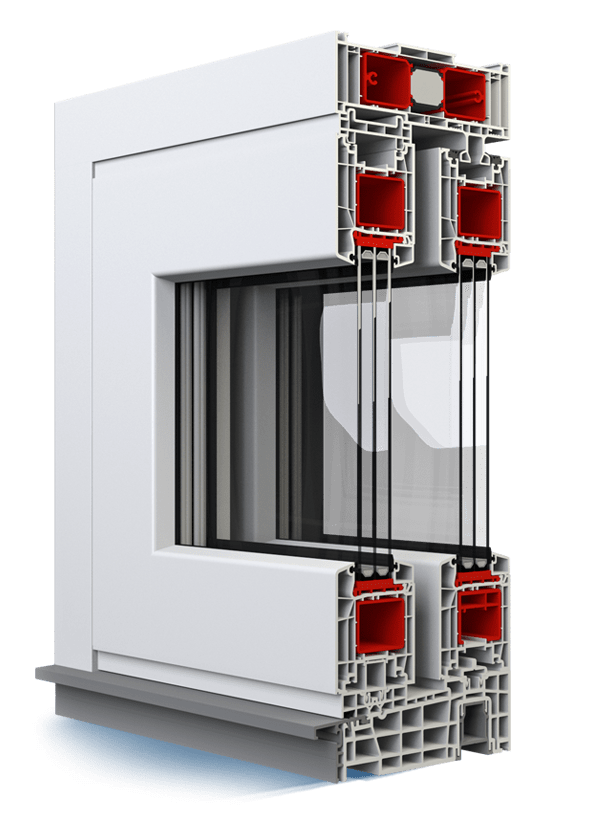

Pathio HST 85

Energy saving sliding door system. It allows the construction of multi-format glass windows maintaining the best thermal insulation parameters. The system is available in three variants: Basic, Standard and Premium. Being one of the HST systems, it allows the assembly of Aluskin aluminum joint covers.
The system HST 85 allows the construction of large glazed doors sliding vertically and horizontally.
Characterized by functionality and good parameters, they are dedicated in particular to single-family building. Doors of this type can be an interesting alternative to traditional French windows.
The creation of these schemes is possible thanks to the hardware of the renowned German supplier - the company G.U.  Thanks to it, the sliding door moves in a particularly light way, even in the case of large structures and with a great weight. Solid sliding carriages, cremonesi and handles guarantee uninterrupted operation for many years. The special coating, which covers all the elements of the hardware, guarantees an optimal corrosion protection.

The technical features:
  • depth of construction - 197 mm,
  • maximum weight of the leaf - 400 kg,
  • amount of sliding tracks - 1 or 2,
  • maximum door dimensions - 3 x 2.5 m,
  • maximum dimensions of the structure - 6700 x 2700 mm (white construction) *,
  • maximum dimensions of the structure - 6700 x 2500 mm (colored construction) *,
  • glass combined from 20 to 51 mm wide,
  • guides made of aluminum,
  • integrated gasket system,
  • in the standard version, two anti-burglary checks,
  • reinforcement in aluminum with rectangular section,
  • possibility to mount the aerator on the glass,
  • possibility to apply the controlled Cremonese with automation,
  • wide range of thresholds,
  • possibility of unilateral veneer, bilateral or in the two-color formula,
  • possibility of applying aluminum joint covers,
  • possibility to mount the low threshold,
  • recommended for energy-efficient buildings
  • the use of special security hardware ensures optimal burglary protection

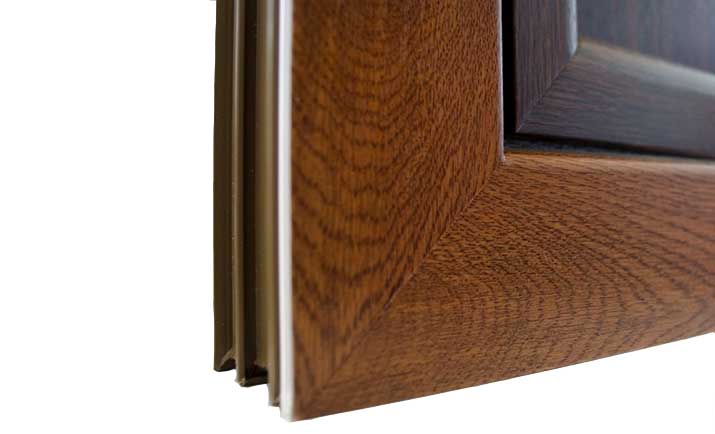

  • invisible welding V-PERFECT
